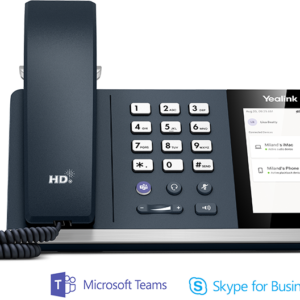

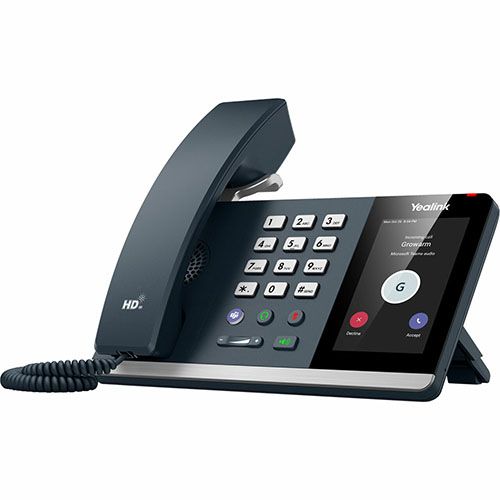

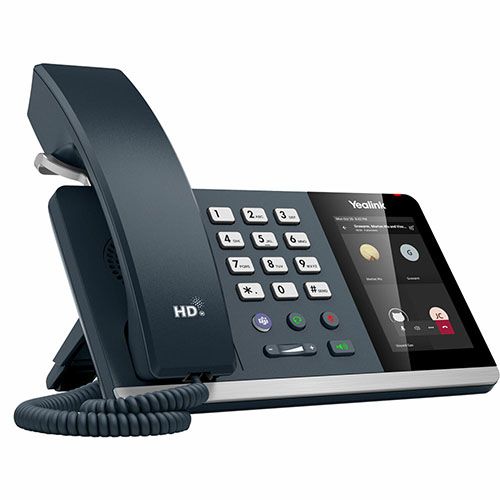

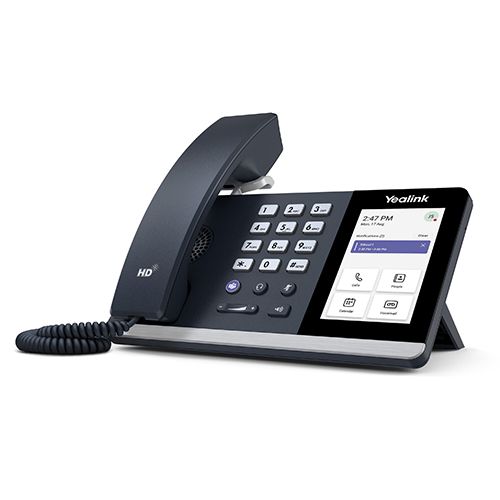

YEALINK MP54 TEAMS EDITION IP PHONE (TEAMS-MP54)

The Yealink TEAMS-MP54 is an entry-level, cost-effective Android 9.0-powered Teams phone for common areas and workers of co-working spaces. Yealink MP54 comes with the new powerful chipsets, which bring stability and sustainability to the device for optimizing the product performance and life cycle. Android 9.0 OS boosts the phone with a fast response and fluent interactive experience for the users. Supporting dual systems, MP54 also provides a secure and stable operating environment.

Datasheet

Description

FEATURES

• Android 9.0
• 4 inch (800 x 480) Capacitive Touch Screen
• Optimal HD audio, Yealink Noise Proof Technology
• Dedicated Microsoft Teams Button
• Supports Upgradability of Firmware to Teams and SfB Edition
• Magnet Handset
• Bluetooth Headset via BT41
• Wi-Fi via WF50
• USB Type A port, Supports USB Headset
• Dual-port Gigabit Ethernet, Supports PoE
• Supports Microsoft/Yealink/Unify Square Device Management Platform
• Hybrid mode (Teams version only)

QUICK SPECIFICATIONS

Audio Features
• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset, magnet handset
• Yealink Noise Proof Technology
• Audio codec: SILK, Opus, G.722, G.722.1, G.722.1C, G.711 (A/μ), G.723, G.726, G.729AB, iLBC
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC
Phone Features
• Call controls
– Call hold/Call mute/Call transfer/Call forward
– Visual voicemail
– Synchronized call logs
• Meeting call controls
– Mute/unmute, hold/resume
– Hang up
– Add/remove participant
– Join Skype for Business meetings
• Phone lock/unlock
• Emergency calls
• Hot desking
• Accessibility
• Screensaver, Power saving
• Common Area Phone (CAP)
• Teams & SIP Hybrid mode (Teams version only)
Display and Indicator
• LCD screen:
– 4” 480×800 capacitive touch screen
– Two-angle [45°/ 53°] stand
– 5 points multi-touch surface
• Dark theme
• Multi-language user interface
• Full keyboard
• LED for call and message waiting indication
• Dedicated Teams button
• Presence integration
Interface
• Dual-port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), class 3
• 1 x USB Type A port
– USB headsets
– Bluetooth headset (Only with Dongle)
– Wi-Fi (Only with Dongle)
• 1 x Security lock port
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port
Management
• Configuration: Browser/Phone/Auto Provisioning
and Device Management Platform
• Provisioning priority management
• Auto Provisioning via Activation Code
• Yealink Redirection and Provisioning Service (RPS)
• QoE (Monitoring Reports)
• Reset to factory, reboot
• Package tracing export, system log
• Screenshot via URL
• Supports Microsoft Device Management Platform
• Supports Yealink Device Management Platform (YMDP/YMCS)
• Supports Unify Square Device Management Platform Network and Security
• IPv4/IPv6
• IP Assignment: Static/DHCP
• Proxy mode
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• Transport Layer Security (TLS)
• HTTPS certificate manager
• Digest authentication using MD5/MD5-sess
• IEEE802.1X
Other Physical Features
• Color: Classic Grey
• External Yealink AC adapter (optional): AC 100~240V input and DC 5V/2A output
• USB output currency: 5V 500mA
• Power consumption (PSU): 1.7w~5.3w
• Power consumption (PoE): 2.3W~6.8W
• Dimension (W*D*H*T): 223mm*159mm*127mm*36mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C (+14~122°F)
