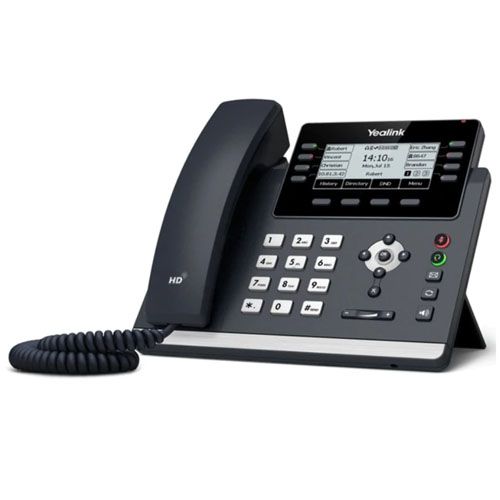

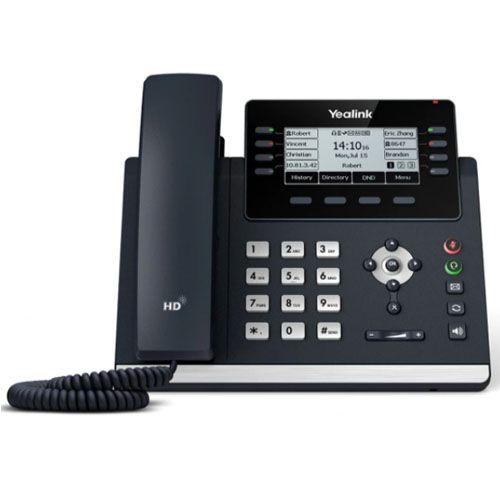

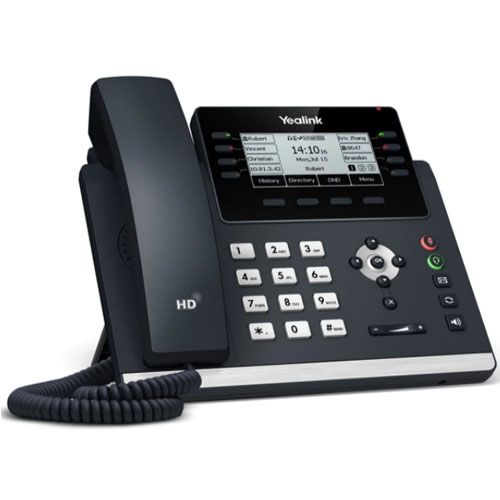

Yealink SIP-T43U 12-Line IP Phone

The Yealink SIP-T43U IP phone is an entry-level desk phone for everyday use in the office. The Yealink SIP-T43U has a classic design with 3.7″ display with 8 line keys and 4 soft keys for a familiar user interface. The T43U features Optima HD audio quality via the hearing aid compatible handset and full-duplex speakerphone with echo cancellation. For hands-free communications, use one of the two USB ports for a USB headset, or use the dedicated RJ9 port. Enable wireless communications with a Bluetooth or Wi-Fi dongle (not included). The USB ports can also be used for call recording. The Yealink SIP-T43U feels quicker and more responsive when performing call features. Moreover, the T43U puts dual USB ports in a phone that makes Bluetooth, Wi-Fi, USB headset and USB recording come true, and you can use any two of them freely according to your needs.

Datasheet

Description

FEATURES

• 3.7″ 360×160-pixel graphical LCD with backlight
• Dual USB ports
• Dual firmware images
• Opus codec support
• T43U/T46U/T48U Auto-P template unified
• T43U/T46U/T48U firmware unified
• Up to 12 SIP accounts
• PoE support
• USB headset and EHS support
• Wi-Fi via WF40/WF50
• Bluetooth via BT40/BT41
• Supports color-screen expansion modules
• Stand with 2 adjustable angles

SPECIFICATIONS

Audio Features
• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• Acoustic Shield
• Wideband codec: AMR-WB (optional), Opus, G.722
• Narrowband codec: AMR-NB (optional), Opus, G.711(A/µ), G.723.1, G.729AB, G.726, iLBC
• DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features
• 12 VoIP accounts
• One-touch speed dial, redial
• Call forward, call waiting, call transfer, call hold
• Call return, group listening, emergency call
• Mute, auto answer, DND, hotline
• 3-way conference call
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial Plan, XML Browser, Action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Dual USB ports (2.0 compliant)
– Bluetooth earphone through BT40/BT41
– Contact synchronization through BT40/BT41
– Wi-Fi through WF40/WF50
– USB call recording through USB flash drive
– USB headset
– Expansion Module EXP43
– Wireless Headset Adapter EHS40
• Enhanced DSS key

Display and Indicator
• 3.7″ 360×160-pixel graphical LCD with backlight
• LED for call and message waiting indication
• Dual-color (red or green) illuminated LEDs for line status information
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name and number
• Power saving

Feature keys
• 8 line keys with LED
• 8 line keys can be programmed up to 21 paperless DSS keys (3-page view)
• 5 features keys: message, headset, mute, redial, hands-free speakerphone
• 4 context-sensitive “soft” keys
• 6 navigation keys
• 2 volume control keys
• Illuminated mute key
• Illuminated headset key
• Illuminated hands-free speakerphone key

Interface
• Dual-port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), Class 2
• 2 x USB port (2.0 compliant)
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port

Reviews

RelatedRelated products

  • Yealink SIP-T54W 16 Line IP HD Phone

    The Yealink SIP-T54W 16 Line IP HD Phone is an easy-to-use Prime Business Phone that is highly suitable for busy executives and professionals. It is perfectly equipped with 4.3″ 480 x 272-pixel color display with backlight, adjustable LCD screen, built-in Bluetooth 4.2 and built-in dual band 2.4G/5G Wi-Fi. The SIP-T54W is coupled with the latest version of Yealink Optimal HD Voice technologies, including Yealink Acoustic Shield technology, that effectively eliminate background distractions and noises. It can also offers 16 VoIP accounts, 3-way conferencing and Direct IP call without SIP proxy.

    Datasheet

    Read more

  • Yealink SIP-T57W 16-Line IP HD Phone with Built-in Bluetooth and WiFi

    Yealink SIP-T57W is an easy-to-use Prime Business Phone with an adjustable 7-inch multi-point touch screen that you can not only easily and flexibly find the comfortable viewing angle according to the personal and environmental needs, but also get a rich visual presentation and easy navigation with just one-touch. With the built-in Bluetooth 4.2 and the built-in dual-band 2.4G/5G Wi-Fi, the SIP-T57W IP Phone ensures you to keep up with the modern wireless technology and take the first chance in the future wireless age. Its built-in USB 2.0 port allows for USB recording or a direct wired/wireless USB headset or up to three Yealink EXP50 expansion modules connection. Benefiting from these features, the Yealink SIP-T57W is a powerful and expandable office phone that delivers optimum desktop efficient and productivity.

    Datasheet

    Read more

  • Yealink SIP-T53W 12 Line IP HD Phone

    The Yealink SIP-T53W 12 Line IP HD Phone is an easy-to-use Prime Business Phone that is highly suitable for busy executives and professionals. It is perfectly equipped with an adjustable 3.7-inch graphical LCD, built-in Bluetooth 4.2 and built-in dual band 2.4G/5G Wi-Fi. It also offers 12 VoIP accounts, 3-way conferencing, Direct IP call without SIP proxy, Dial plan, XML Browser and Action URL/URI. In addition, the Yealink SIP-T53W is a powerful and expandable office phone that delivers optimum desktop efficient and productivity.

    Datasheet

    Read more

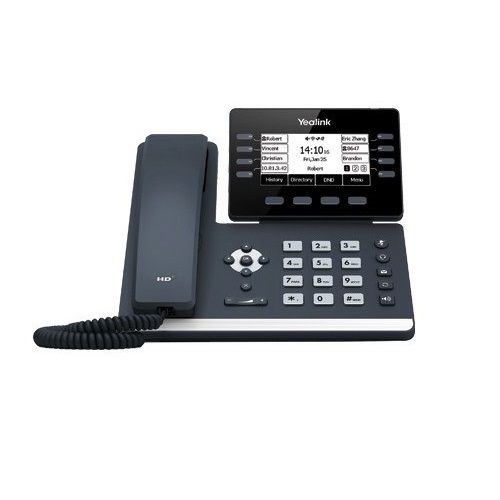

  • YEALINK SIP-T53 12-LINE GIGABIT IP PHONE
